Email Layouts

Overview

Layouts are reusable components used with email steps in the workflow, designed to bring consistency, maintainability, and efficiency to your email communications. With layouts, teams can create a component using headers, footers and other branding elements and reuse that component across multiple email steps and workflows.

Each environment includes one default layout, but you can create additional layouts based on your needs — such as transactional, marketing, or newsletter types.

Important: Every layout must include the {{content}} variable. This variable dynamically injects the content of the email step.

Layout features

Reusable across workflows: one layout can be shared across many workflows and email steps.
Visual (Block) editor: block-based editor for building layout templates.
Code editor: use raw HTML for full control.
Environment-scoped: each environment maintains its own set of layouts.
Supports variables: use liquid variables like {{subscriber.firstName}} and {{payload.orderId}}.

In free plan, only one layout can be created per environment. In pro and higher plans, upto 100 layouts can be created per environment. If you need more than 100 layouts, please contact us at support@novu.co.

Managing layouts

You can find layouts in the sidebar on Novu dashboard.

Here, you will see a list of existing layouts along with creation and editing options.

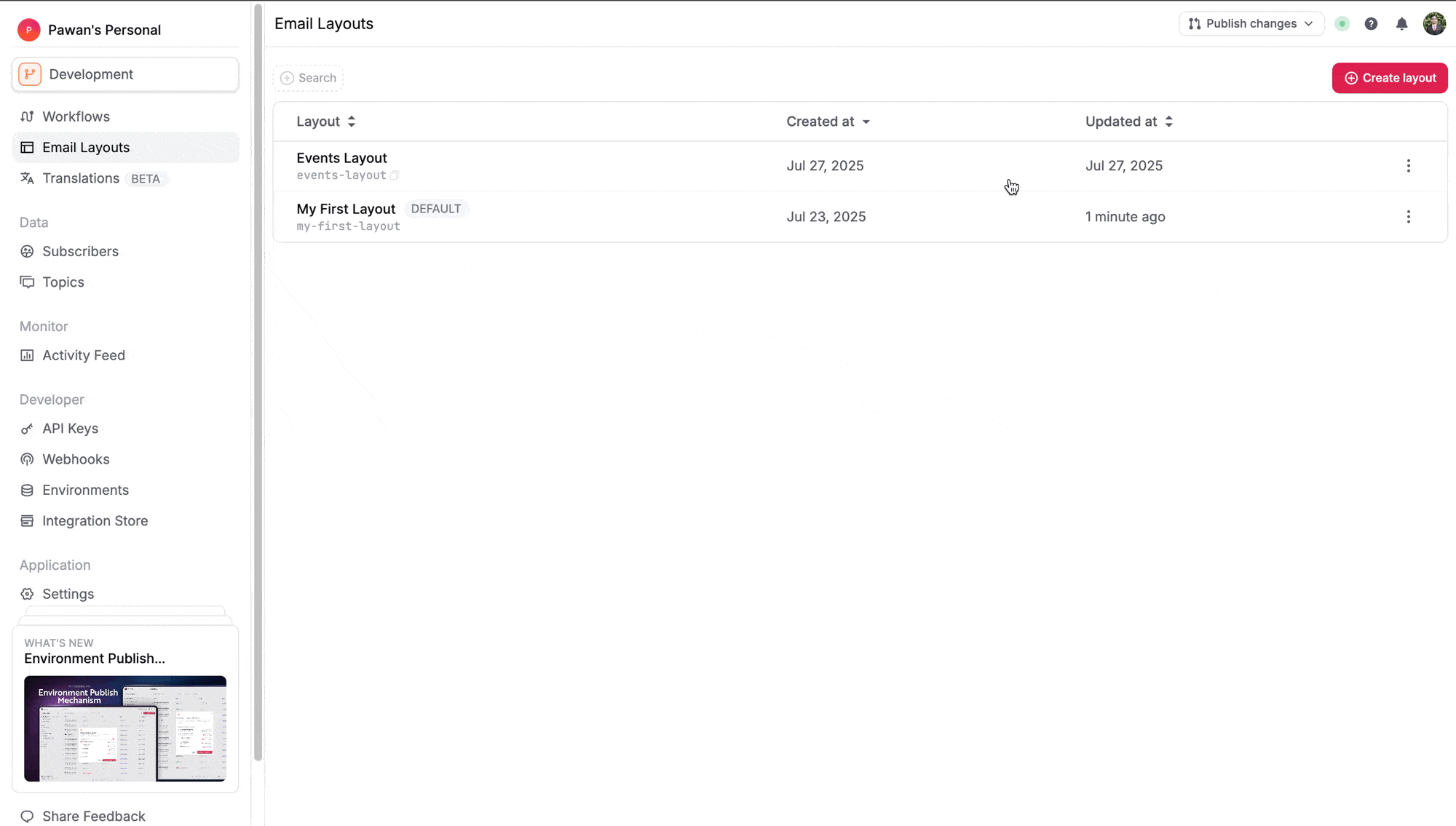

Layouts page

Creating a layout

Navigate to the layouts page on Novu dashboard.
Click on the Create layout button on the top right corner.
Fill in:
- Layout Name - Human-readable name such as Newsletter Layout
- Identifier - Unique ID used internally and in APIs such as newsletter-layout. This will be generated automatically if not provided.

A new layout is created with the provided name and identifier.

Writing layout content

Layout content can be written in two ways:

Block Editor: Visual interface for building layout components. Add elements like headers, footers, images, and buttons by pressing / key.
Code Editor: Write your layout using HTML.

Both editors offer the same features and capabilities as the email step editor. Ensure your layout includes {{content}}, which acts as a placeholder for actual email content from the workflow.

Example HTML content:

<html>
  <body>
    <header>
      <h1>Welcome to Acme Inc.</h1>
    </header>

    {{content}}

    <footer>
      <p>Visit us at example.com</p>
    </footer>
  </body>
</html>

Editing the layout

Navigate to Layouts page on Novu dashboard.
Click on a layout from the list.
Click the cog icon in the layout editor to rename the layout or change its identifier.
Edit the layout content in either the Block or Code editor.
Preview the layout in the preview pane, using mock subscriber data if needed.

A layout can be deleted or duplicated by clicking on the three dots and selecting the action. If a layout is already in use, you will see a warning message while deleting the layout.

Using a layout in workflow email step

Navigate to Workflows page on Novu dashboard.
Select a workflow from the list.
Select any email step of the workflow.
Choose your layout from the Layout selector.

The selected layout wraps around the content written in the email editor.

Payload variables are not supported in layouts because one layout can be used across multiple workflows and workflows can have strict payload schema validation.

Use layouts for branding elements: logos, consistent colors, company details.
Use the Block editor for easier collaboration with non-technical teammates.
Use the Code editor when replicating an HTML design from Figma or another tool.
